Protecting Your Fleet & Crew:

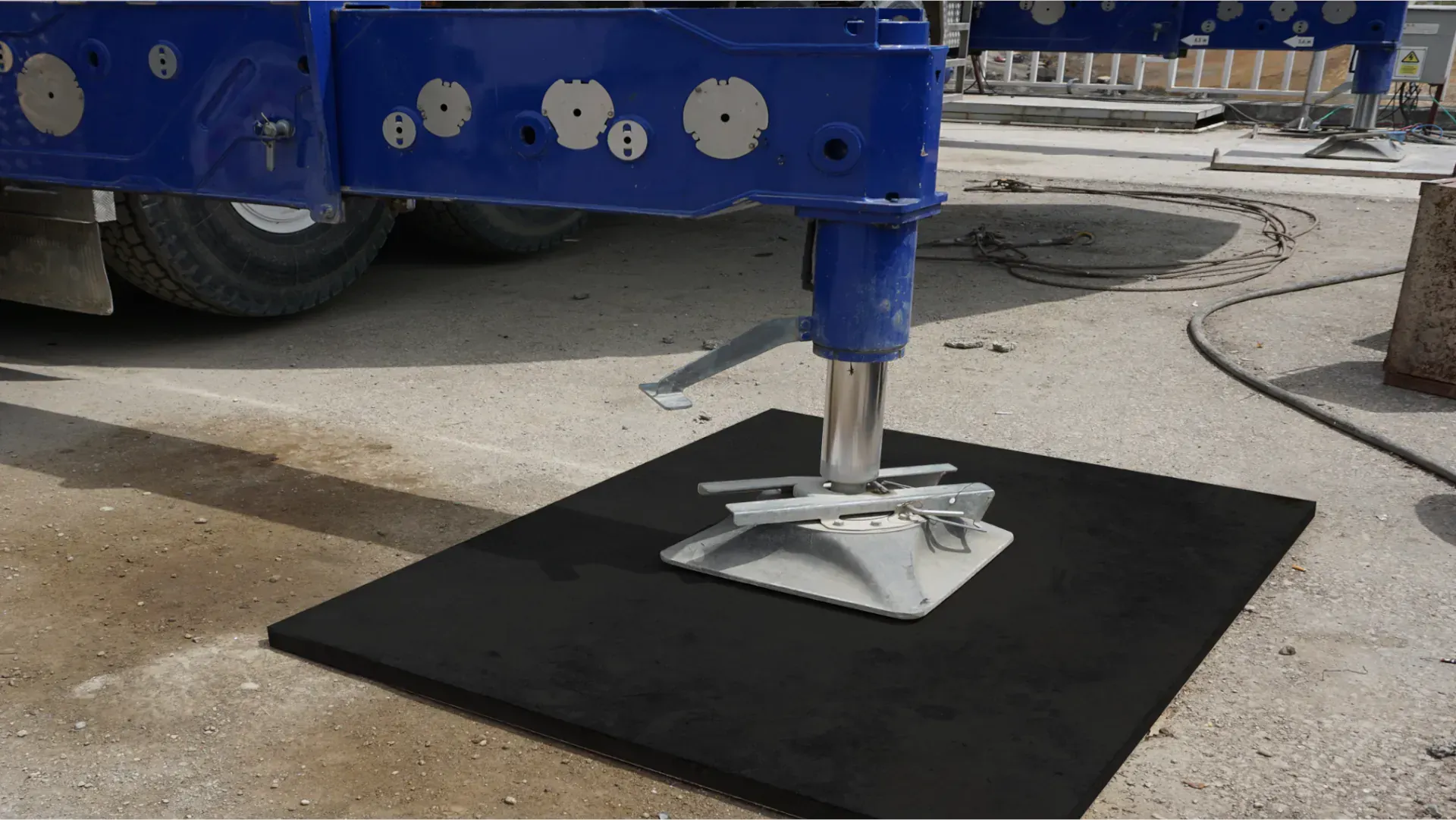

The Ultimate Guide to Heavy-Duty Outrigger Pads for Utility & Crane Trucks

   In the heavy equipment export and utility fleet sector, operational safety is non-negotiable. Whether operating used bucket trucks, digger derricks, truck-mounted cranes, or aerial work platforms, stability is the foundation of every overhead job site.

   One of the most frequent causes of catastrophic workplace accidents, equipment rollover, and structural damage is ground instability under outrigger legs. Outrigger pads (also called stabilizer pads, crane pads, or ground mats) serve as the vital interface between multi-ton point loads and unpredictable ground terrain. Mapartex includes Outrigger Pads in every Equipment Truck with outriggers and Equipment Truck buyers should expect and require them with their new acquisition.

1. What Are Outrigger Pads? (Product Overview)

   Outrigger pads are heavy-duty, engineered load-distribution mats placed beneath the floats or stabilizer feet of bucket trucks, boom trucks, mobile cranes, backhoes, and aerial lifts.

• Primary Function: They spread the immense downward concentrated load (point load) exerted by an outrigger leg over a significantly larger surface area, drastically reducing ground bearing pressure.

• Modern Materials: While traditional operations historically relied on heavy steel plates or wood cribbing that rotted, split, and absorbed moisture, modern outrigger pads are manufactured using UHMWPE (Ultra-High-Molecular-Weight Polyethylene) or engineered composite polymers.

• Key Features:
• High vertical load capacities (ranging from 15 tons up to 100+ tons).
• Lightweight relative to steel, non-conductive, and non-porous (resistant to water, oil, and harsh hydraulic fluids).
• Integrated safety rope or wire handles for rapid job-site placement and transport.

2. Operating Safety with Outrigger Pads: Bucket Trucks, Crane Trucks & Aerial Equipment

   Deploying outriggers without proper pad support undermines the basic physics of vehicle stability. Here is how outrigger pads support safe operations across core truck-mounted machinery:

A. Bucket Trucks & Aerial Lift Trucks

   Bucket truck boom extensions alter the vehicle's center of gravity as the boom swivels and extends horizontally. Even slight ground sinkage under an outrigger foot amplifies boom movement exponentially at height, threatening worker stability in the bucket. Outrigger pads absorb side-load torque and prevent soft asphalt, mud, or turf from collapsing under the leg during boom swing.

B. Truck-Mounted Cranes & Digger Derricks

   Cranes and digger derricks handle extreme dynamic weights when hoisting utility poles, transformers, or structural steel. When lifting heavy loads, maximum weight transfers onto the active outrigger side. Outrigger pads prevent localized soil failure and maintain a level operating foundation, keeping the load radius within safe chart limits.

C. Suitable Equipment Applications

• Digger derricks and pressure diggers
• Bucket trucks and boom lifts (Altec, Terex, Versalift, Palfinger, HIAB)
• Mobile telescopic cranes and boom trucks
• Service/mechanic trucks with service cranes
• Concrete pump trucks and well-drilling rigs

3. The Consequences of Operating Without Outrigger Pads

   Failing to use properly rated outrigger pads is one of the most hazardous shortcuts an equipment operator can take.

   The consequences include:

1. Catastrophic Tip-Overs & Rollovers: If soil fails under an outrigger foot, the truck instantly tilts. At maximum boom extension, even a few inches of ground sinkage can tip a multi-ton crane or bucket truck over, causing fatal injuries or total equipment loss.
2. Pavement & Underground Infrastructure Damage: Direct outrigger foot contact exerts thousands of pounds per square inch (PSI) onto surfaces. This punches holes through hot asphalt, breaks concrete slabs, and crushes underground utility pipes or septic lines.
3. Boom and Cylinder Bending: Uneven ground settlement puts side-stress on hydraulic outrigger cylinders and telescopic boom sections, causing bent hydraulic rods, structural hairline cracks, and costly downtime.
4. OSHA & Safety Violations: International safety standards (OSHA 1926.1402 in the US and equivalent global standards) require firm, supporting ground under crane and lift equipment. Operating without ground support leads to severe fines, job-site shutdowns, and denied insurance claims following an incident.

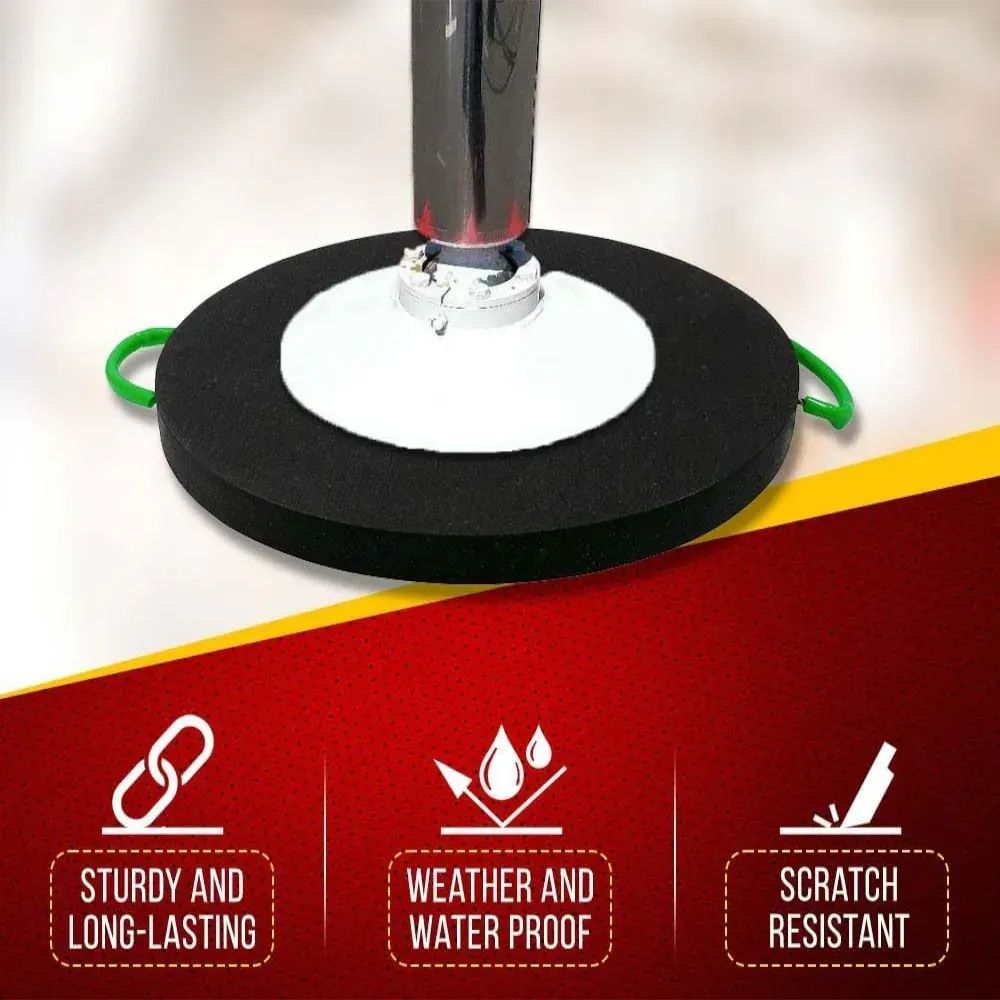

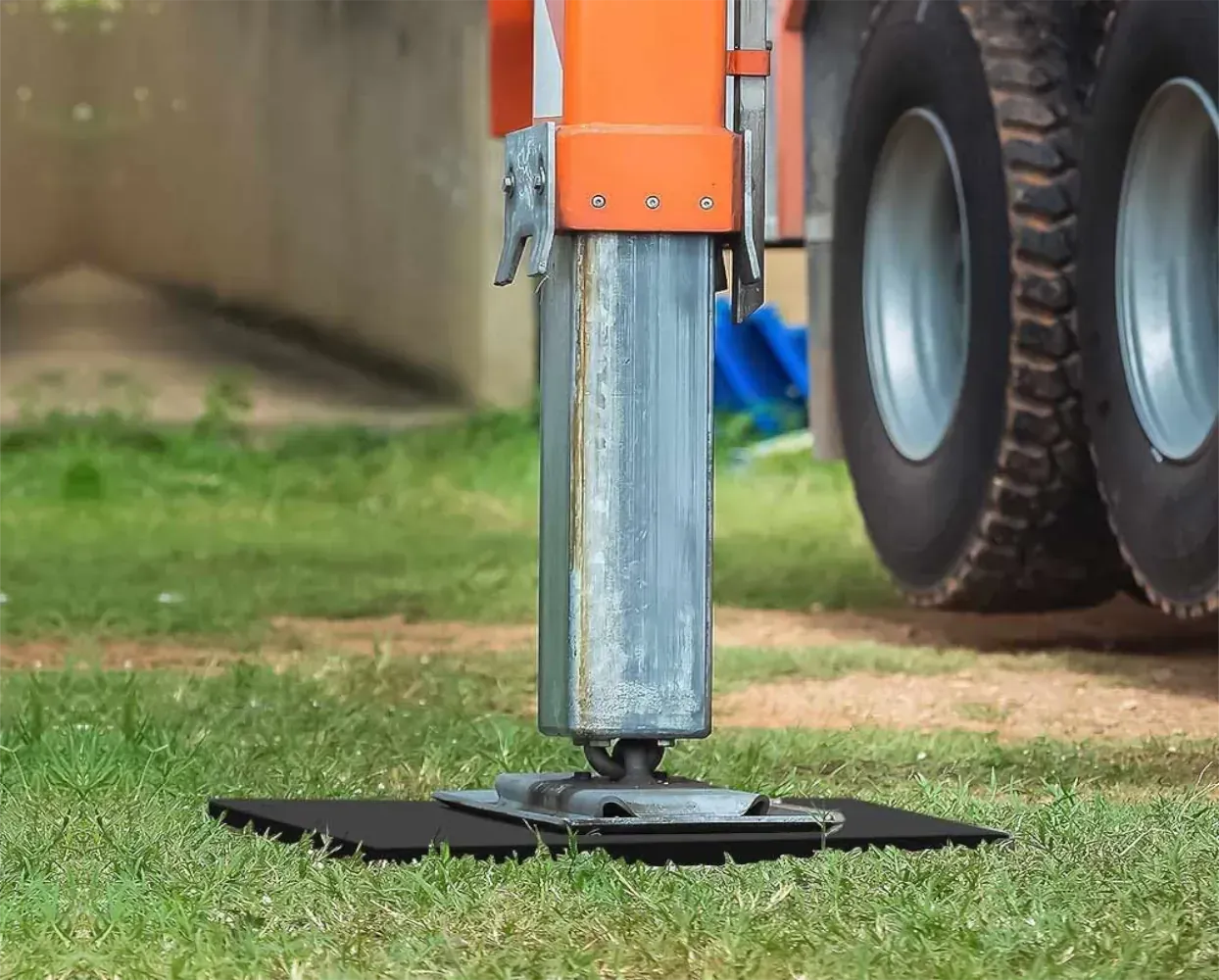

4. Top Outrigger Pad Options

   Below are 4 recommended outrigger pad options. These solutions are categorized by load capacity, portability, and equipment size to help global fleet buyers and contractors select the ideal safety gear.

• Note for Buyers: Be sure to measure your outrigger foot diameter and check your machine's Maximum Allowable Outrigger Load (MAOL) before ordering.
• This post contains affiliate links. If you purchase through these links, we may earn a commission at no additional cost to you. As an Amazon Associate we earn from qualifying purchases.
